As physical AI moves from simulation into the real world, one challenge is becoming increasingly important: how can robots collect enough high-quality real-world data to learn complex physical tasks?
One influential approach is Mobile ALOHA, a low-cost bimanual mobile manipulation system developed by Stanford researchers. Rather than manually programming every movement, Mobile ALOHA allows humans to demonstrate tasks through whole-body teleoperation and uses those demonstrations as training data for robot learning.
The project was developed by Zipeng Fu, Tony Z. Zhao, and Chelsea Finn at Stanford University. Its research focuses on bimanual mobile manipulation, whole-body teleoperation, imitation learning, and data-efficient robot learning.
What Is Mobile ALOHA?
Mobile ALOHA is a low-cost, open-source bimanual mobile manipulation system that extends the ALOHA platform with a mobile base and whole-body teleoperation.
The original ALOHA platform was designed to enable human operators to control two robotic arms and collect demonstrations for imitation learning. Mobile ALOHA extends this setup beyond a fixed tabletop workspace. By adding mobility, the robot can combine navigation, positioning, and bimanual manipulation within the same task.
At a high level, Mobile ALOHA consists of:
|
Component
|
Function
|
|
Mobile platform
|
Enables autonomous navigation and mobility across dynamic environments
|
|
Quad-arm system (2 leader, 2 follower)
|
Executes precise bimanual manipulation via synchronized leader-follower architecture
|
|
Vision system (Cameras)
|
Captures high-fidelity visual data for state estimation and environment perception
|
|
Teleoperation interface
|
Facilitates intuitive task demonstration and data collection
|
|
Onboard computing
|
Processes real-time multimodal data and deploys learned control policies
|
This architecture allows the same system to serve two roles: a teleoperated robot for collecting demonstrations and an autonomous robot for executing learned behaviors.
Why Did Mobile ALOHA Become So Popular?
The public demonstrations of Mobile ALOHA showed something that is difficult for conventional robot systems: a relatively inexpensive robot could learn a wide variety of physical tasks from less quantity of human demonstrations.

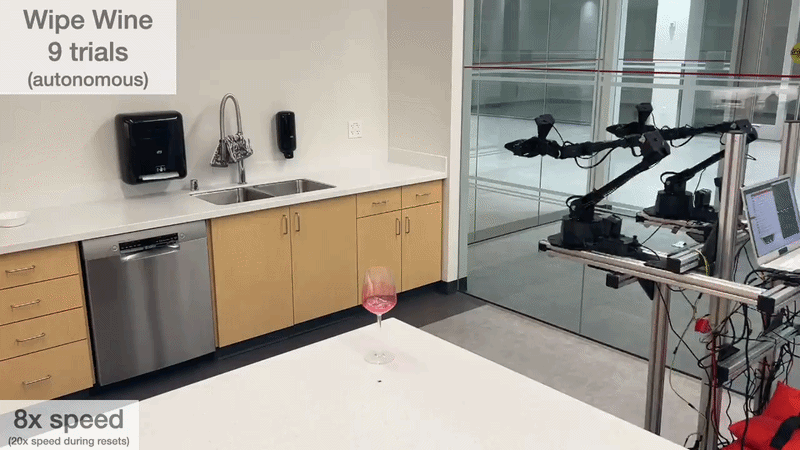

The tasks included cooking, opening cabinets, rinsing pans, wiping spilled liquids, pushing chairs, calling and entering elevators, and other household activities.
However, the key innovation is not that Mobile ALOHA was programmed with hundreds of individual behaviors. Instead, the system provides a way for humans to demonstrate a task directly on the physical robot. Those demonstrations can then become training data for an imitation-learning policy. This creates a simple loop, which is fundamental for physical AI research:
Human demonstration → Real-world data → Robot learning → Policy → Autonomous execution
How Does Mobile ALOHA Learn From Real-World Data?
Mobile ALOHA uses whole-body teleoperation to collect demonstrations for imitation learning. During a task, a human operator controls the robot's arms and mobile base while the system records synchronized observations and robot actions.
The collected data includes RGB camera observations, robot joint positions, mobile-base velocity, robot actions, and proprioceptive information. The original system uses three RGB cameras — two wrist-mounted cameras and one forward-facing camera — to capture the robot's interaction with its environment. Data processing and inference are handled by a laptop equipped with an Intel Core i7-12800H processor and NVIDIA RTX 3070 Ti GPU.
The learning pipeline builds on Action Chunking with Transformers (ACT), a Transformer-based imitation learning method developed for the ALOHA system. ACT predicts sequences of robot actions from observations, allowing the robot to learn behaviors from human demonstrations and execute them autonomously. This helps the robot learn complex manipulation behaviors from relatively small numbers of human demonstrations.
How Much Real-World Data Does Mobile ALOHA Need?
One of the notable findings from Mobile ALOHA research is its focus on data efficiency. The open-source ALOHA dataset already provides a substantial foundation, with 825 demonstration tasks covering a wide range of manipulation behaviors. These include sealing bags, picking up forks, packaging candy, tearing paper towels, opening lidded cups, playing table tennis, operating a coffee machine, flipping pencils, fastening Velcro cables, inserting batteries, and using a screwdriver.
Rather than collecting all training data from scratch on the mobile robot, Mobile ALOHA combines new mobile-manipulation demonstrations with existing ALOHA data.
For several mobile manipulation tasks, the researchers used 50 demonstrations per task and found that co-training with static ALOHA data could significantly improve performance. In some experiments, co-training achieved success rates of up to 90%, depending on the task.
This demonstrates an important principle for real-world robot learning:
Existing datasets can be reused as a foundation, reducing the amount of new task-specific data that needs to be collected on physical robots.
Mobile ALOHA Hardware and Cost
Mobile ALOHA was built primarily from commercially available components rather than an entirely custom robotic platform. The system uses an AgileX Robotics TRACER mobile robot platform, two ViperX 300 follower arms, two leader arms for teleoperation, three Logitech C922x RGB cameras, onboard battery power, and a laptop for computing.
|
Key Specifications
|
Mobile ALOHA
|
|
System type
|
Bimanual mobile manipulation
|
|
Mobile platform
|
AgileX Robotics 2-wheel differential AGV TRACER
|
|
Follower arms
|
2 × ViperX 300
|
|
Teleoperation arms
|
2 × leader arms
|
|
Cameras
|
2 wrist + 1 forward-facing
|
|
Camera resolution
|
480 × 640
|
|
Camera frequency
|
50 Hz
|
|
Compute
|
Intel i7-12800H + NVIDIA RTX 3070 Ti
|
|
Battery
|
1.26 kWh
|
|
Vertical reach
|
65–200 cm
|
|
Horizontal extension
|
Up to 100 cm
|
|
Payload
|
Up to 1.5 kg
|
|
Approx. system budget
|
$32,000
|
The reported system budget was approximately $32,000, which is particularly significant in the context of real-world data collection: the lower the cost of each physical data-collection platform, the easier it becomes to scale robot-learning experiments.
COBOT MAGIC: A Mobile ALOHA-Based Platform for Real-World Data Collection
The ideas demonstrated by Mobile ALOHA have also inspired commercial and research platforms based on the same architecture. One example is COBOT MAGIC, a mobile dual-arm teleoperation platform developed by AgileX Robotics based on the Mobile ALOHA architecture.
COBOT MAGIC combines a mobile base, multiple robotic arms, cameras, onboard computing, and teleoperation hardware into a platform designed for robot learning, embodied AI data collection, and mobile manipulation research.
Unlike the original Mobile ALOHA research configuration, COBOT MAGIC uses a more powerful configuration centered around TRACER 2.0, PiPER robotic arms, depth perception, and an industrial PC.
|
Component
|
Configuration
|
|
Mobile platform
|
TRACER 2.0, 2-wheel differential drive
|
|
Depth camera
|
Orbbec Dabai
|
|
USB expansion
|
4 × USB ports
|
|
Robotic arm
|
4 × PiPER, 6-DoF
|
|
Gripper
|
AgileX custom
|
|
Teach pendant
|
AgileX custom
|
|
Storage drawer
|
410, 4-position custom configuration
|
|
Main power switch
|
1.8 m
|
|
Robot frame
|
1125 × 758 × 1507 mm
|
|
External mobile power supply
|
AgileX custom
|
|
Industrial PC
|
Intel Core i7-13700 / 32 GB RAM / 2 TB SSD / NVIDIA RTX 4060
|
|
Keyboard
|
Logitech
|
|
Display
|
11.6-inch, 1080P
|
COBOT MAGIC for Embodied AI Data Collection
COBOT MAGIC is a mobile dual-arm teleoperation platform based on the Mobile ALOHA architecture, designed for real-world data collection and robot learning. The platform can collect multimodal real-world data, including:
-
Vision and depth
-
Robot status and joint states
-
Motion data
-
Actions and teleoperation trajectories
This makes COBOT MAGIC suitable for bimanual teleoperation, imitation learning, long-horizon task data collection, and embodied AI model training. Its open software ecosystem supports ROS 1 / ROS 2, as well as simulation environments including Gazebo, Isaac Sim, and MuJoCo. It also provides SDKs and sample algorithms, with support for frameworks and models such as LeRobot, π0, π0.5, and RDT.
From Real-World Data to Robot Learning
The relationship between Mobile ALOHA and platforms such as COBOT MAGIC can be understood as a continuous development loop:
Human Demonstration → Teleoperation → Multimodal Real-World Data → Policy Training → Simulation Validation → Real-Robot Evaluation → New Data
The key idea is that the physical robot is not simply the endpoint of an AI model. It can also become a data-generation and learning platform. Human demonstrations provide real-world examples, learned policies are evaluated on physical robots, and the resulting experience can feed back into further training.
As robot learning and VLA systems continue to evolve, scalable ways to collect and reuse high-quality multimodal real-world data will remain an important part of building capable physical AI systems.
FAQ
Core Concepts & Positioning
-
What is the ALOHA platform?
-
A low-cost, open-source hardware and software system designed specifically for bimanual teleoperation and robot-learning data collection.
-
How does Mobile ALOHA relate to physical AI?
-
By adding mobility to the original ALOHA, it serves as a practical reference architecture for physical AI. It enables the efficient collection of real-world multimodal data via human demonstrations to train robot-learning policies.
Data Collection & Learning Mechanisms
-
How does the system collect data and learn tasks?
-
It records visual observations, robot states, and actions during whole-body teleoperation. The system learns through imitation learning and supervised behavior cloning, supporting algorithms like ACT, Diffusion Policy, and VINN.
-
How many demonstrations are needed?
-
It is highly data efficient. Research shows that when combined with existing static ALOHA data, only about 50 human demonstrations are sufficient to learn challenging mobile manipulation tasks.
System Cost & AgileX Commercial Solutions
-
What was the budget for the original architecture?
-
The original Mobile ALOHA research system was built with a budget of approximately $32,000, which includes onboard power and computing.
-
What is COBOT MAGIC?
-
It is a commercial-grade mobile bimanual teleoperation platform based on the Mobile ALOHA architecture. It deeply integrates a TRACER 2.0 mobile base, PiPER robotic arms, depth sensing, and onboard computing. With a complete open software ecosystem, it empowers developers to build and deploy embodied AI solutions out of the box.
References
Huge thanks to Zipeng Fu, Tony Z. Zhao, and Chelsea Finn at Stanford University for this amazing progress.
Mobile ALOHA Robot: https://mobile-aloha.github.io/
COBOT MAGIC: https://global.agilex.ai/products/cobot-magic
ALOHA: https://tonyzhaozh.github.io/aloha/
ALOHA 2: https://arxiv.org/abs/2405.02292
ACT (Action Chunking with Transformers): https://huggingface.co/docs/lerobot/act
