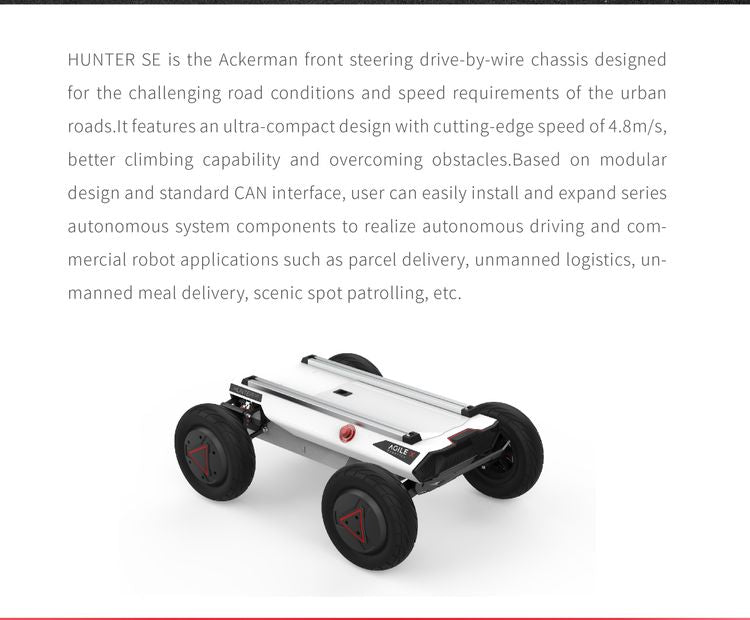

HUNTER SE High-Speed Ackermann UGV

HUNTER SE High-Speed Ackermann UGV

Build faster mobile robots for autonomous driving, industrial inspection, and customized applications.

Core Performance Metrics

4.8m/s

Max Speed

50kg

Payload

9.5Hours

Runtime

8°

Climb (Full Load)

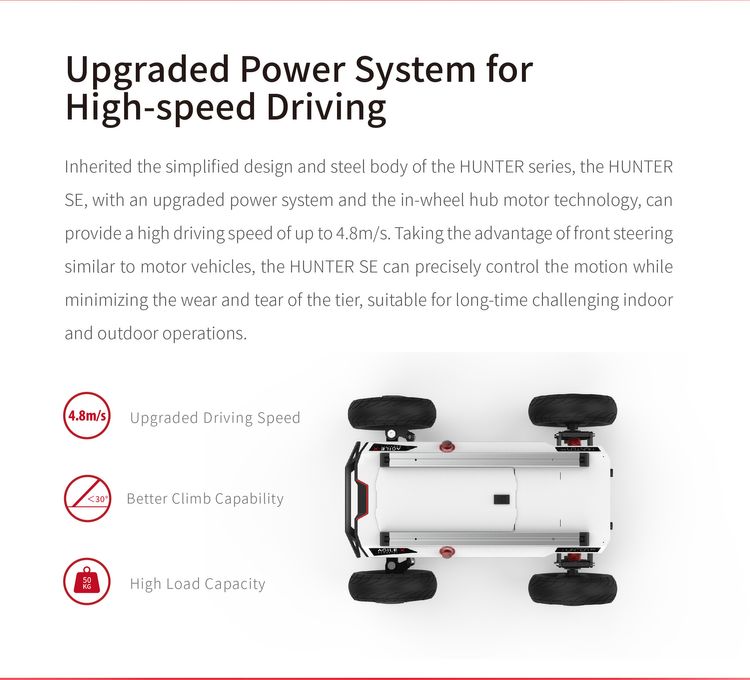

High-Speed Mobility with 50 kg Payload

With a maximum speed of 4.8 m/s and a 50 kg rated moving payload, HUNTER SE supports rapid field testing, equipment transport, inspection missions, and high-intensity mobile robotics development.

Efficient Steering for Long-Duration Operation

HUNTER SE uses Ackermann steering for predictable turning, precise vehicle control, and reduced tire wear, helping move over speed bumps, ramps, and common road obstacles while maintaining stable movement.

Open & Programmable UGV Platform

Use CAN communication, SDK resources, and ROS development packages to control vehicle motion, read platform status, and integrate sensors, onboard computers, and custom payloads.

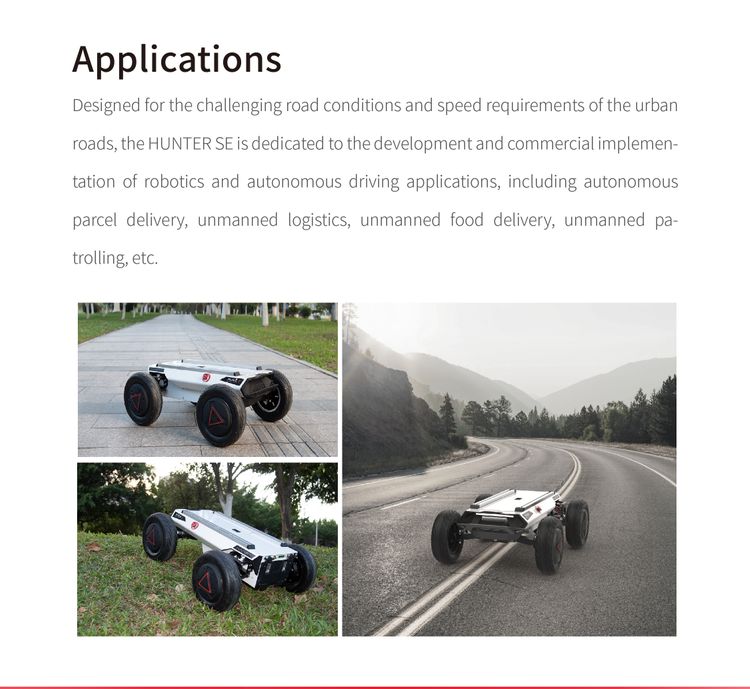

Who Is HUNTER SE For?

Built for teams developing high-speed autonomous vehicles, inspection robots, and Ackermann-based mobile systems.

Autonomous Driving R&D Teams

For teams validating perception, localization, planning, and vehicle-control algorithms on a real Ackermann mobile platform.

Industrial Inspection Integrators

For solution providers building mobile inspection robots for industrial parks, utilities, infrastructure, and large operational sites.

Robotics Companies & System Integrators

For developers creating customized UGVs with LiDAR, cameras, GNSS/RTK, onboard computing, and application-specific payloads.

Universities & Research Labs

For autonomous systems, sensor fusion, motion planning, and field robotics research beyond simulation.

Complete Ecosystem

Seamless integration with industry-standard hardware and software

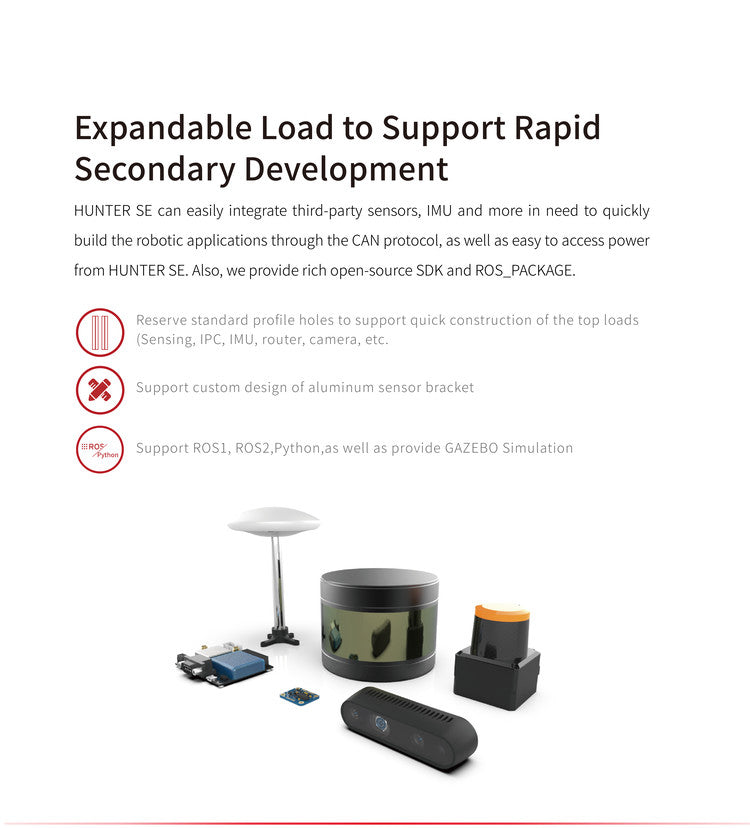

Components & Accessories

Integrate sensors, onboard computing, robotic arms, and application-specific payloads.

Robotic Arm
Robotic Arm
GNSS / RTK Positioning
GNSS / RTK Positioning
LiDAR
LiDAR
Custom Payload
Custom Payload

Software & Algorithms

Develop with CAN and SDK control, ROS integration, sensor data interfaces, and autonomous navigation resources.

CAN Bus & SDK Control

ROS 1 / ROS 2 Integration

SLAM & Navigation Stack

FAQ

HUNTER SE is a programmable Ackermann UGV and high-speed autonomous driving development platform for robotics research, inspection, logistics, and customized mobile robot development.

HUNTER SE suppoHUNTER SE supports a rated moving payload of up to 50 kg. Actual performance depends on terrain, speed, battery condition, and payload configuration.ts a rated moving payload of 50 kg. Actual payload and mobility performance depend on speed, terrain, slope, and system configuration.

The maximum speed is up to 4.8 m/s under specified test conditions.

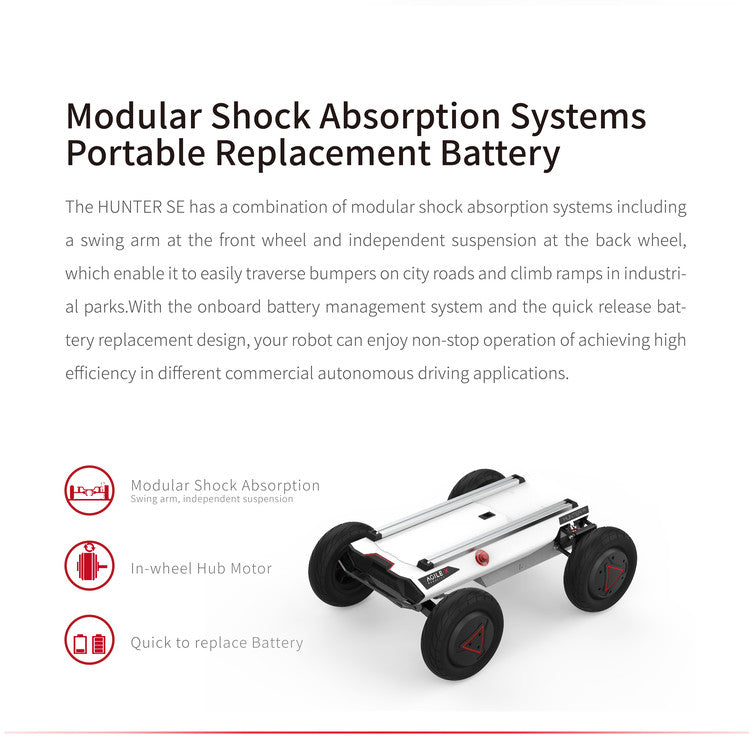

HUNTER SE is optimized for structured roads and moderate terrain rather than full off-road operation. Its suspension system helps it pass speed bumps, ramps, and common road obstacles.

Yes. HUNTER SE provides ROS development resources and CAN-based control interfaces. Developers can use ROS packages to control vehicle motion and read platform status.

HUNTER SE can be integrated with LiDAR, stereo cameras, GPS, IMU, onboard computers, and other application-specific sensors.

HUNTER SE uses CAN communication for vehicle control, status feedback, battery information, and fault monitoring.

HUNTER SE is a development platform. System integrators and end users are responsible for application-level safety assessment, environmental validation, and final system compliance.

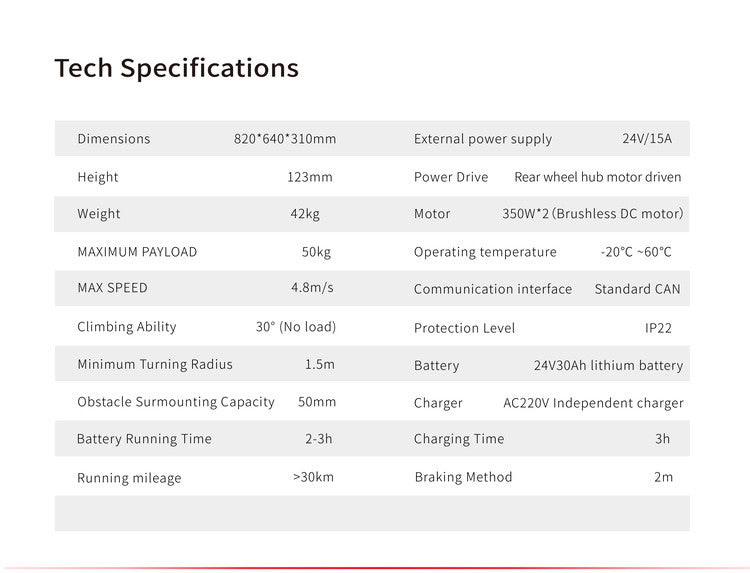

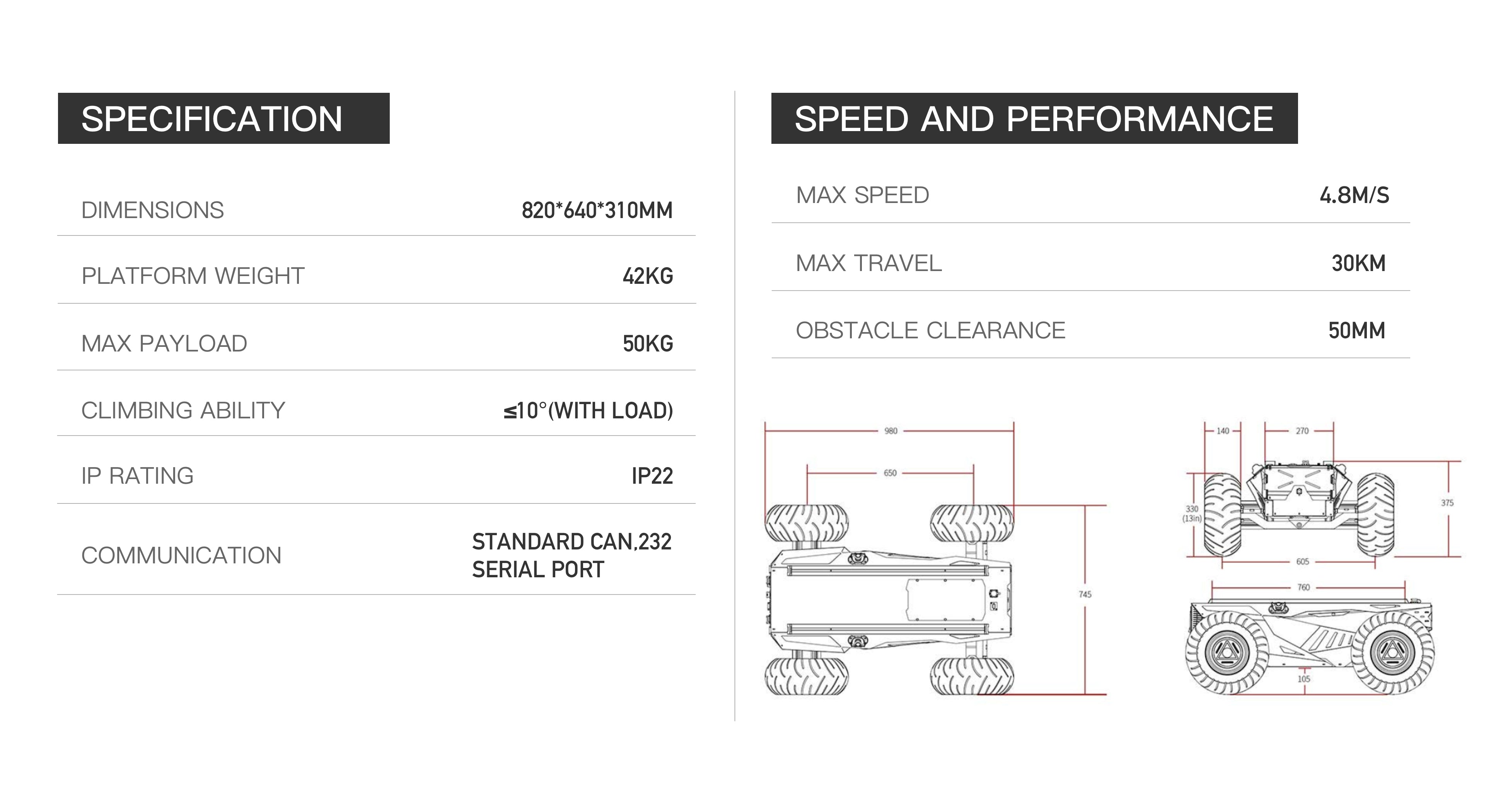

Technical Specifications

Motion Mode

Ackermann

Weight

42kg

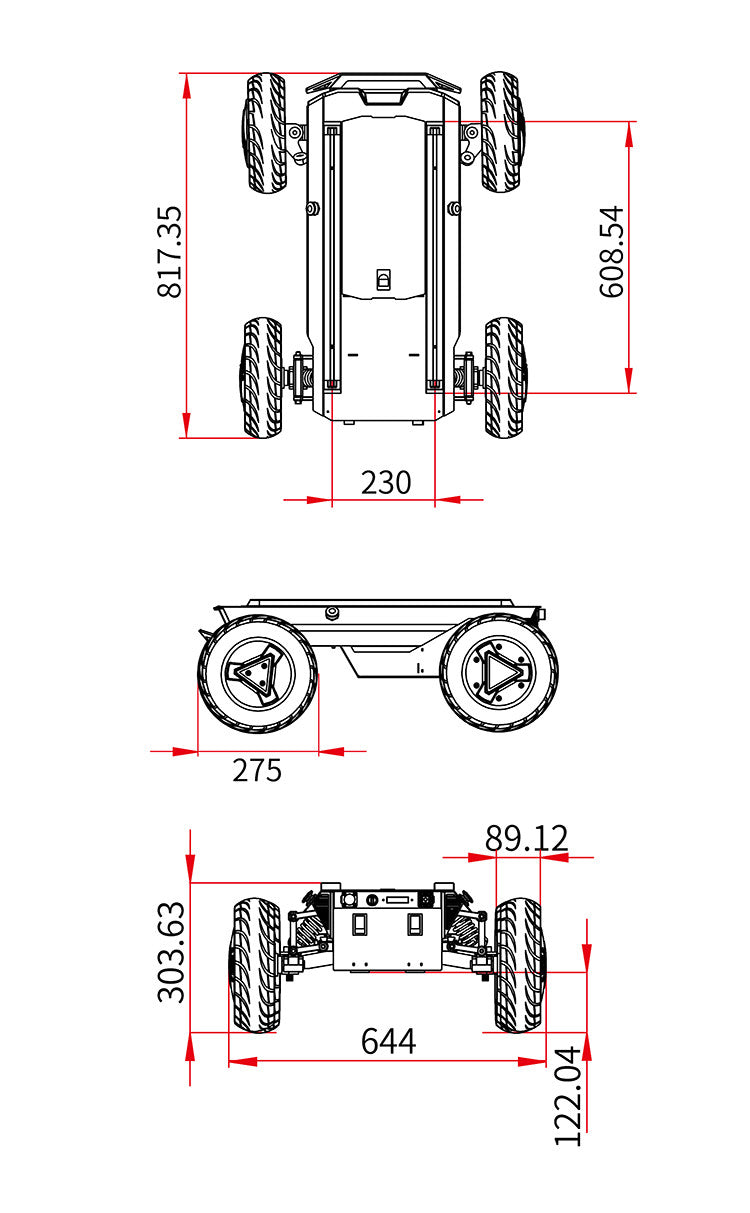

dimensions (mm)

820*640*310

IP Rating (Customizable)

IP22

Ground Clearance

120mm

Temperature

-10~40℃

Runtime

9.5hour

Climb (Full Load)

8°

Obstacle Clearance

30mm

Max Speed

4.8m/s

Max Range

45km

Payload

50kg
