RANGER MINI 3.0
Compact Omnidirectional Mobile Platform

RANGER MINI 3.0
Compact Omnidirectional Mobile Platform

For flexible field robotics, humanoid robotics system, and embodied AI platform

Core Performance Metrics

2m/s

Max Speed

120kg

Payload

3Hours

Runtime (Full Load)

20°

Climb

IP54 Protection with Extended Runtime

With IP54 protection, RANGER MINI 3.0 is adaptable to multiple environments. It delivers up to 15 km of loaded range and recharges in approximately 1.5 hours.

Four-Wheel Steering for Flexible Omnidirectional Mobility

Equipped with four-wheel steering and independent suspension, RANGER MINI 3.0 supports omnidirectional movement and can cross obstacles up to 75 mm, adapting to diverse indoor and outdoor environments.

Compact Design, High Payload Efficiency

Weighing approximately 73 kg while supporting a 120 kg rated moving payload, RANGER MINI 3.0 offers a cost-effective solution for rapid deployment across mobile robotics applications.

RANGER MINI 3.0 in Action

Who Is RANGER MINI 3.0 For?

Built for organizations deploying agile autonomous transport and service robots in space-constrained industrial and commercial environments.

Manufacturers & Factory Operators

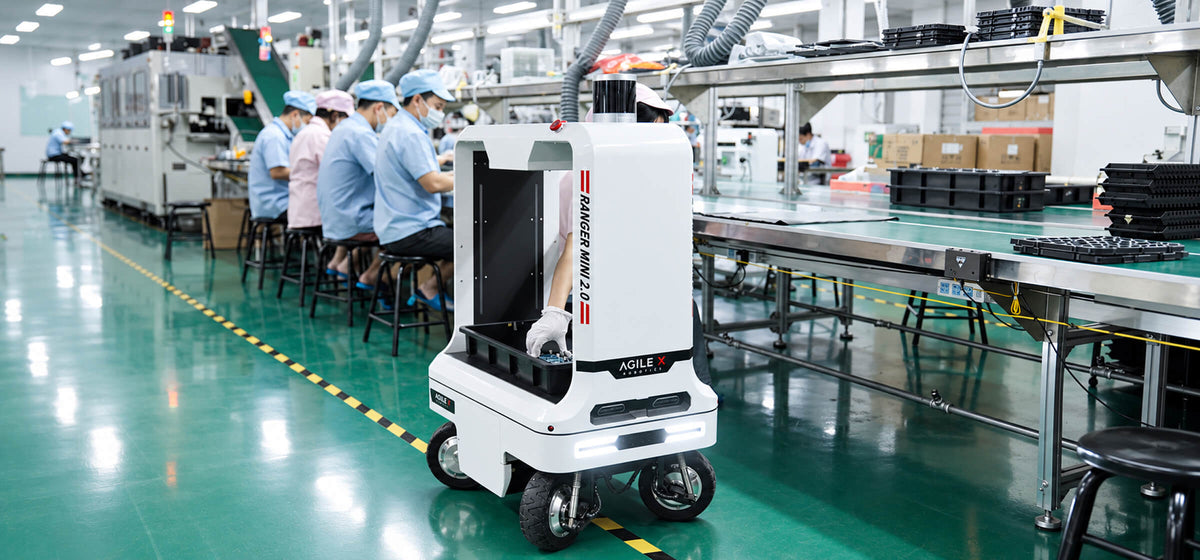

Automate material movement between production lines, warehouses, and workstations.

Warehouses & Logistics Facilities

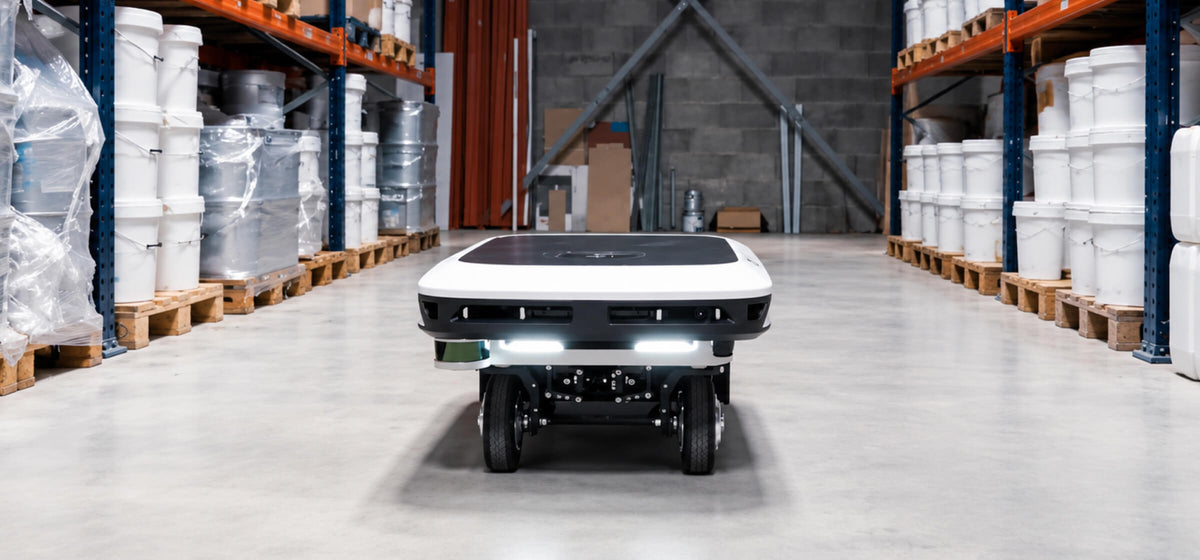

Deploy flexible transport robots for narrow aisles, dynamic routes, and high-frequency delivery tasks.

Commercial Properties & Campuses

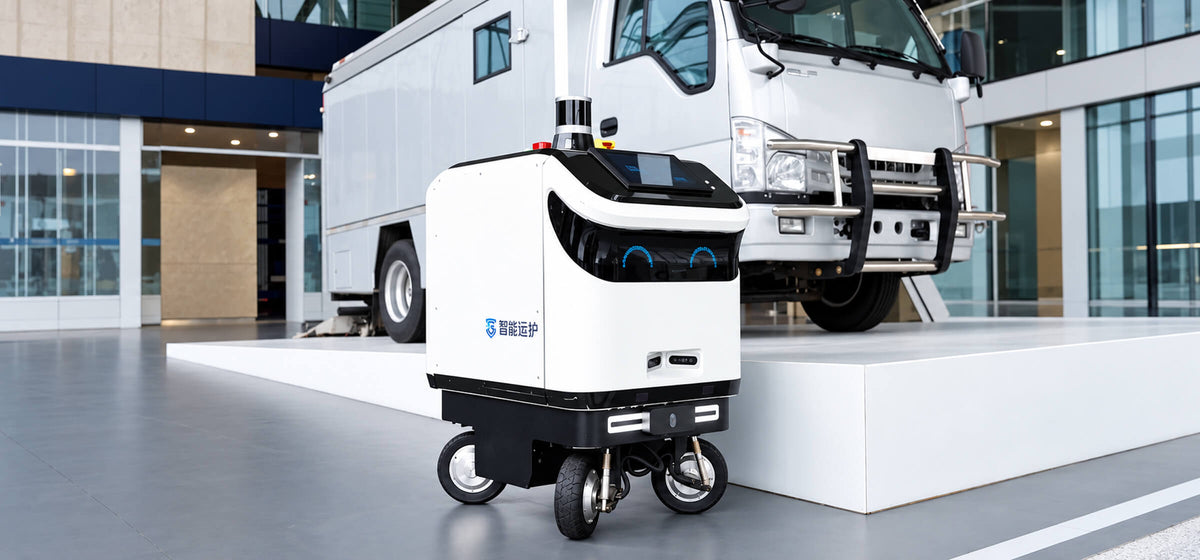

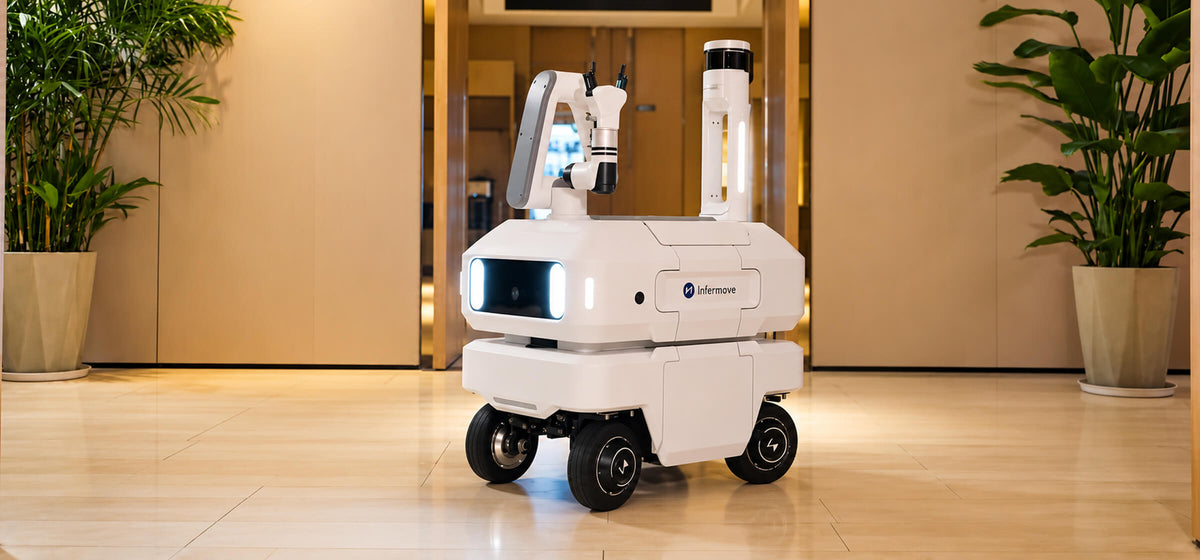

Support autonomous delivery and security escort across offices, campuses, and mixed indoor–outdoor spaces.

Robot Developers & System Integrators

Build customized AMRs with navigation sensors, computing systems, and task-specific payloads.

Complete Ecosystem

Seamless integration with industry-standard hardware and software

Components & Accessories

Integrate LiDAR, cameras, onboard computing, robotic arms, cargo modules, and application-specific payloads.

Robotic Arm
Robotic Arm
Depth Camera
Depth Camera
LiDAR
LiDAR
Charging Dock
Charging Dock

Software & Algorithms

Develop with CAN communication, SDK resources, ROS integration, simulation tools, SLAM, navigation, and robot control.

C++ SDK

CAN

ROS 1 & ROS 2 Packages

Navigation System

FAQ

RANGER MINI 3.0 is a compact four-wheel-steering mobile robot platform for delivery, inspection, field robotics, and customized AGV/AMR development.





It supports Ackermann steering, lateral movement, and in-place rotation for flexible positioning and narrow-space maneuvering.




RANGER MINI 3.0 supports a rated moving payload of up to 120 kg.





Yes. It supports the AgileX UGV SDK, CAN-based control, and ROS 1 / ROS 2 development resources.


RANGER MINI 3.0 is designed for broader indoor/outdoor mobility, higher payload, and field deployment. RANGER AIR is optimized for embodied AI, humanoid robots, and mobile manipulation research.



Technical Specifications

Motion Mode

4WD, 4WS

Weight

73kg

dimensions (mm)

720*500*345

IP Rating

IP54

Ground Clearance

105mm

Temperature

-10~40℃

Runtime (Full Load)

3hours

Climb

20°

Obstacle Clearance

75mm

Max Speed

2m/s

Max Range (Full Load)

15km

Payload

120kg
