BUNKER MINI 2.0
Compact Tracked Robot

BUNKER MINI 2.0
Compact Tracked Robot

Mobile platform for flexible mobile robot development, light-duty outdoor transport, inspection, exploration, and field robotics applications

Core Performance Metrics

56kg

Weight

25kg

Payload

1m/s

Max Speed

10°

Climb (Full Load)

High-Traction Mobility for Challenging Terrain

Equipped with Christie suspension and differential track steering, BUNKER MINI supports 10° climbing under load, 180 mm gap crossing, and 100 mm obstacle crossing.

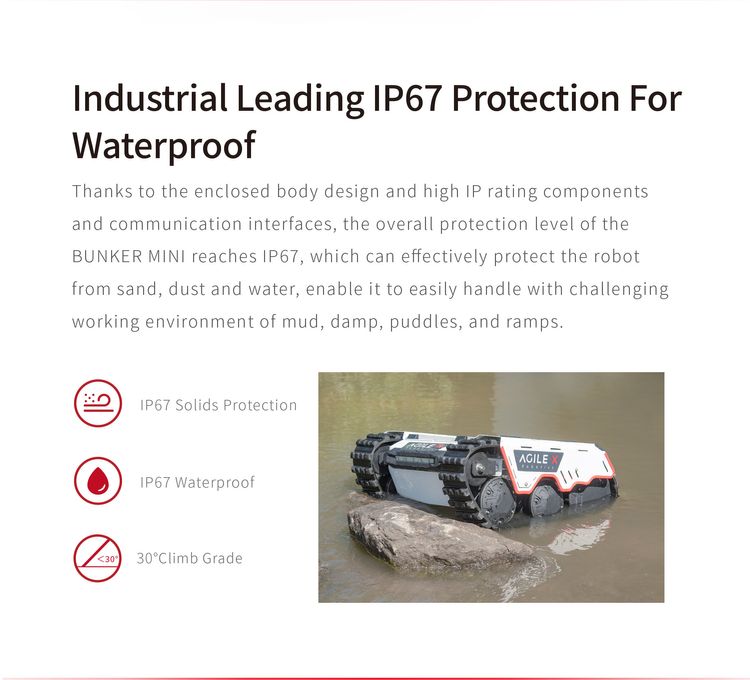

IP67 Protection for Outdoor & Extreme Environments

The IP67-rated platform is designed to support operation in dusty, wet, muddy, and other demanding outdoor environments when used within the specified operating conditions.

Efficient Power & Reliable Endurance

Powered by a 24 V LiFePO₄ battery (optional 30 Ah or 60 Ah capacity), BUNKER MINI delivers up to 5km of range under full load. Dual 350W DC motors provide stable power for outdoor mobile robotics applications.

Open Expansion for Mobile Robot Development

Support optional 5G teleoperation, the Autowalker intelligent navigation kit, and depth cameras, enabling rapid integration of perception, autonomous navigation, and remote-control capabilities.

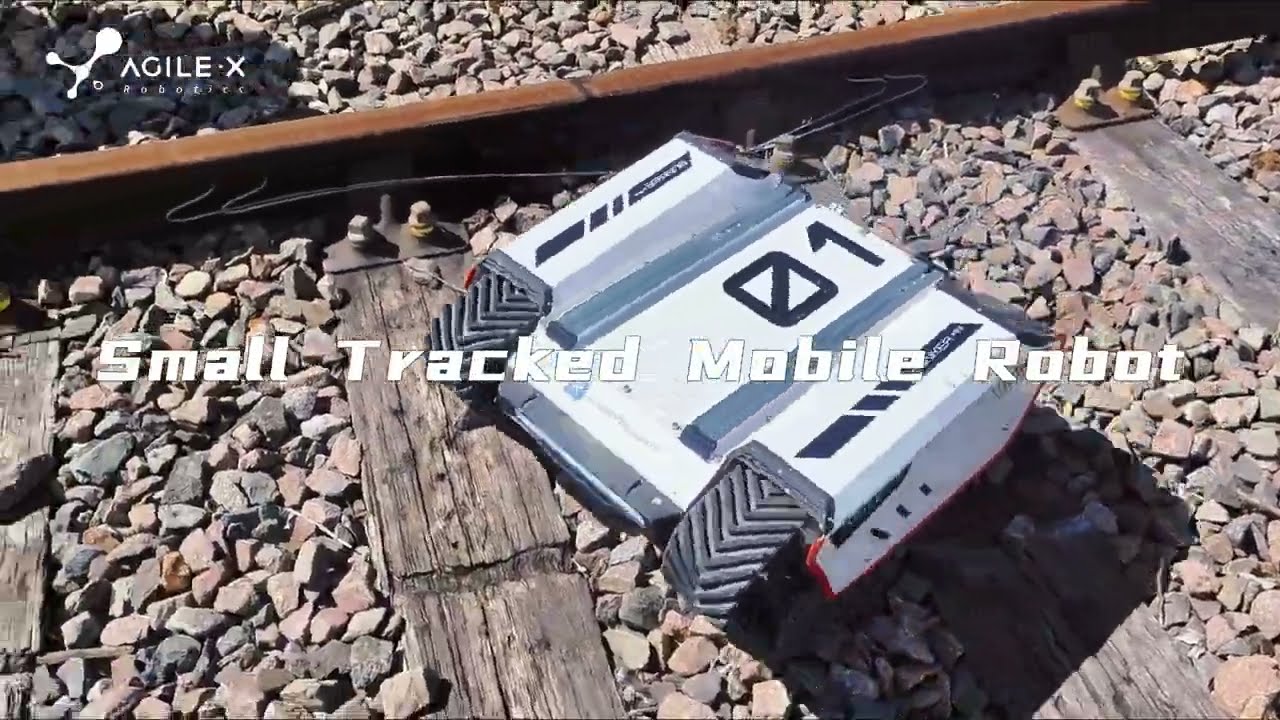

BUNKER MINI in Action

Who is Using BUNKER MINI

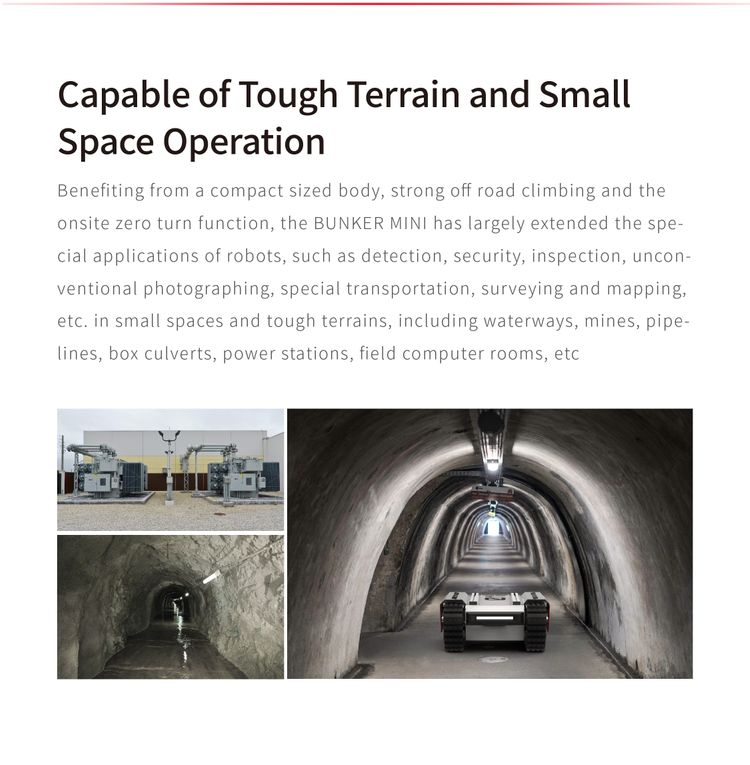

Built for teams developing compact tracked robots for outdoor inspection, autonomous patrol, field research, and operations across confined or uneven terrain.

Industrial Inspection Integrators

Developing compact inspection robots for utilities, construction sites, industrial facilities, and remote infrastructure.

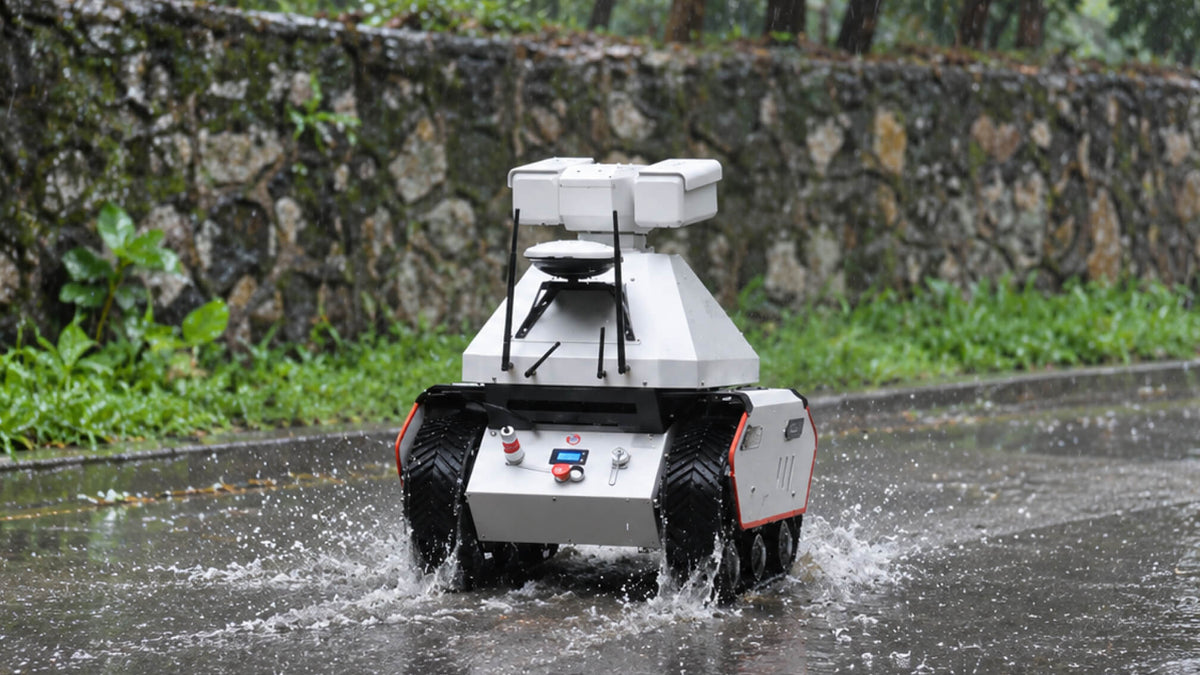

Emergency Response & Security Teams

Deploying unmanned systems for reconnaissance, remote monitoring, and equipment transport in hazardous or inaccessible areas.

Infrastructure & Facility Operators

Automating patrol, monitoring, and data collection across campuses, tunnels, substations, and outdoor facilities.

Universities & Robotics Labs

Researching tracked mobility, autonomous navigation, sensor fusion, and field robotics in real-world environments.

Complete Ecosystem

Seamless integration with industry-standard hardware and software

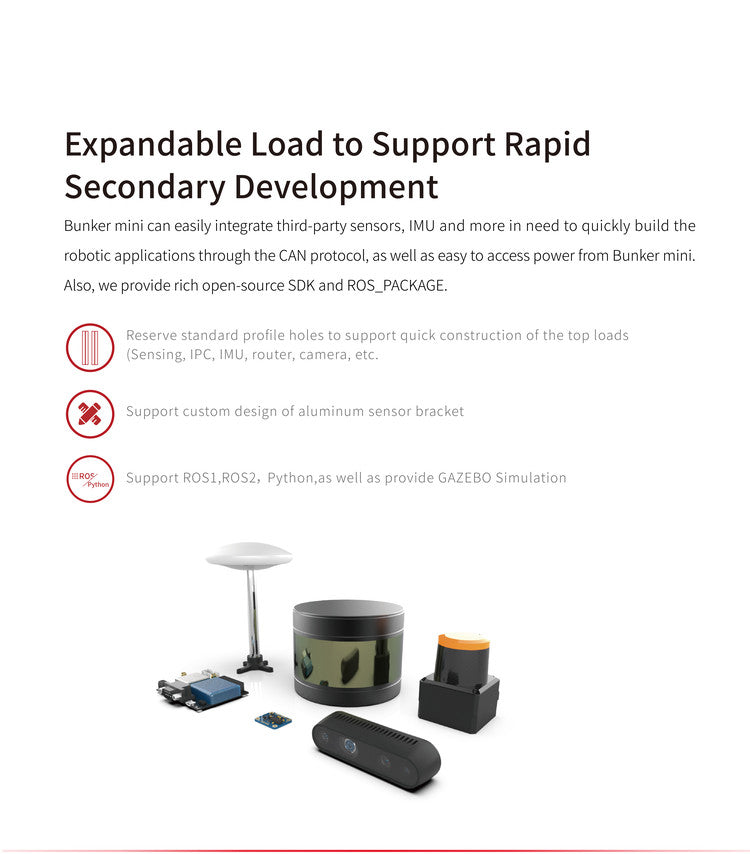

Components & Accessories

Integrate LiDAR, cameras, onboard computing, robotic arms, and task-specific payloads for rugged field applications.

LiDAR
LiDAR

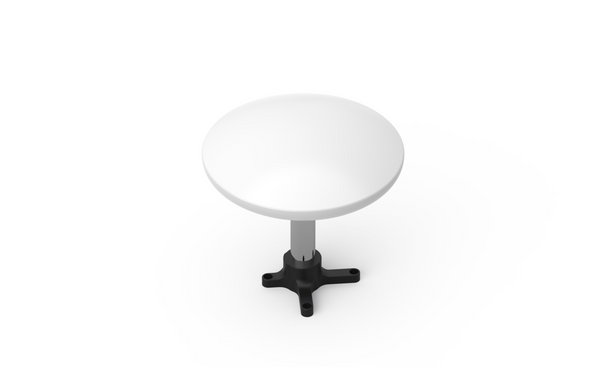

GNSS / RTK Positioning
GNSS / RTK Positioning
Depth Camera & Vision System
Depth Camera & Vision System

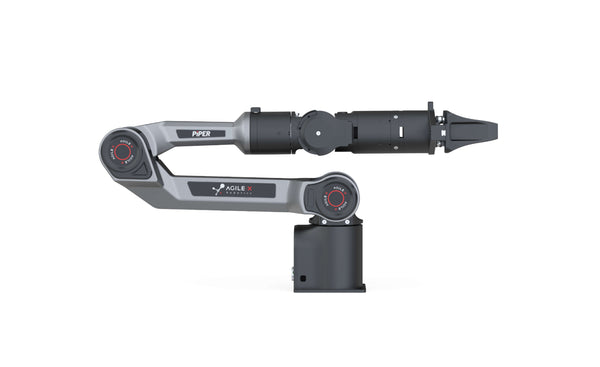

Manipulators
Manipulators

Software & Algorithms

Develop with CAN, SDK, ROS, and simulation resources for navigation, perception, autonomy, and robot control.

CAN & SDK Control

ROS 1 / ROS 2

Autonomous Navigation Stack

SLAM Toolbox

Related Solutions

Rapid Deployment of BUNKER MINI 2.0 in challenging outdoor operations

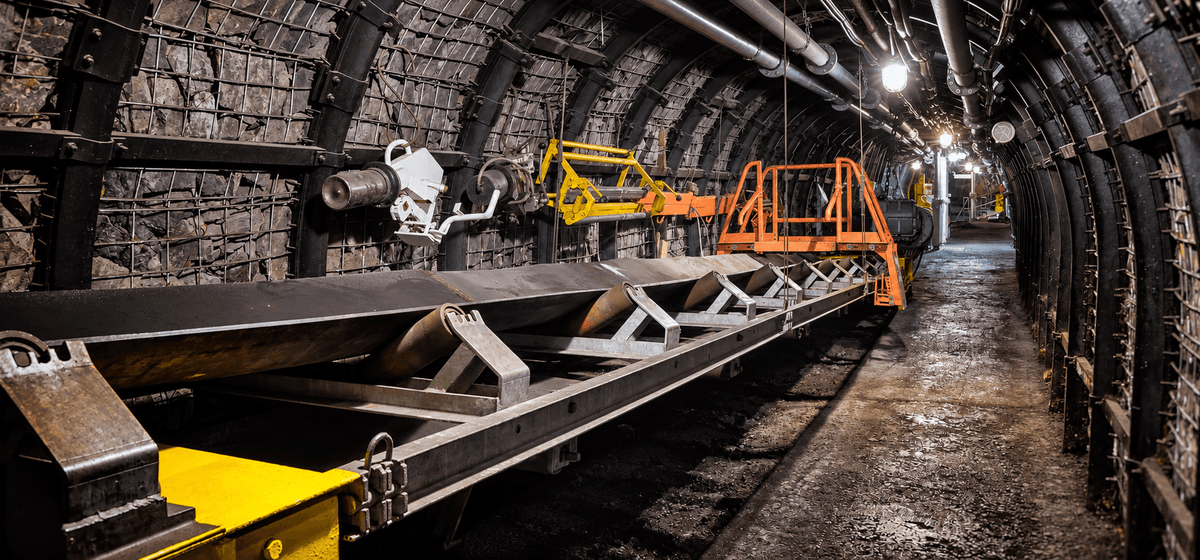

Industrial Inspection

Industrial Inspection

Automate routine inspection, monitoring, and data collection for hazardous, demanding industrial environments.

Learn More
NAVIS Autonomous Navigation

NAVIS Autonomous Navigation

Equip BUNKER MINI 2.0 with autonomous navigation system to enable reliable positioning, mapping, and navigation in dynamic environments.

Learn More

FAQ

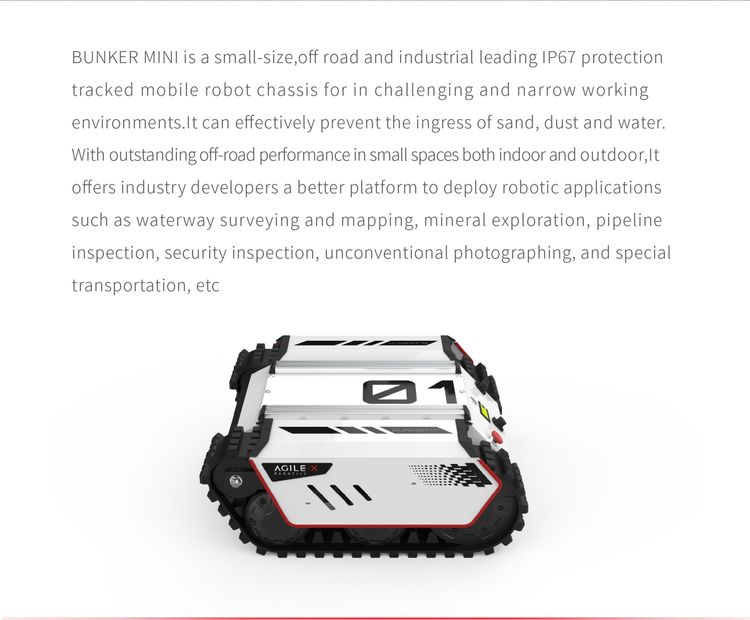

BUNKER MINI is a compact tracked mobile robot platform for outdoor inspection, security patrol, research, and autonomous system development in confined or rugged environments.




Its tracked drive combines terrain adaptability with a compact footprint, enabling stable mobility over uneven ground while operating in narrower spaces.



BUNKER MINI is better suited to compact deployments, lighter payloads, and rapid development, while BUNKER PRO provides greater capacity and stability for heavy-duty industrial applications.





The platform can accommodate LiDAR, depth cameras, GNSS/RTK, environmental sensors, onboard computers, and other customized payloads.




Yes. With an autonomous navigation system such as NAVIS, it can perform mapping, localization, obstacle avoidance, route patrol, and remote monitoring in complex outdoor environments.


It is suitable for universities, robotics developers, inspection solution providers, infrastructure operators, and emergency-response organizations.

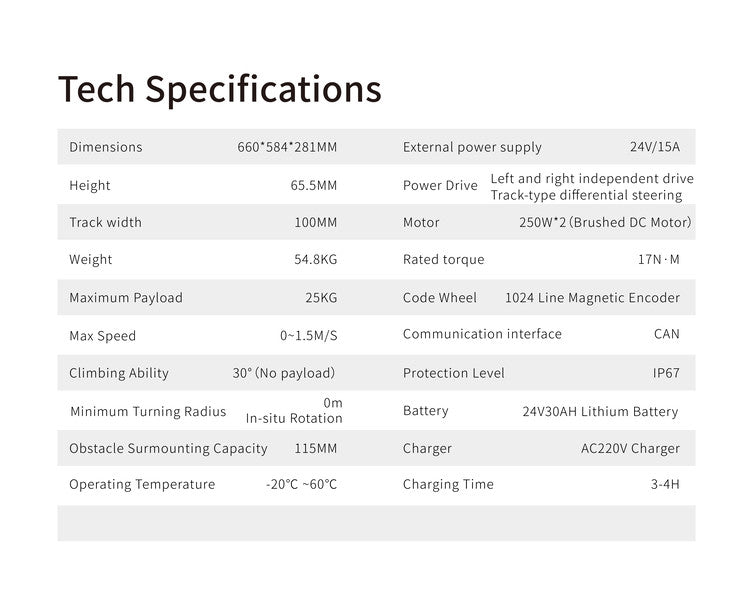

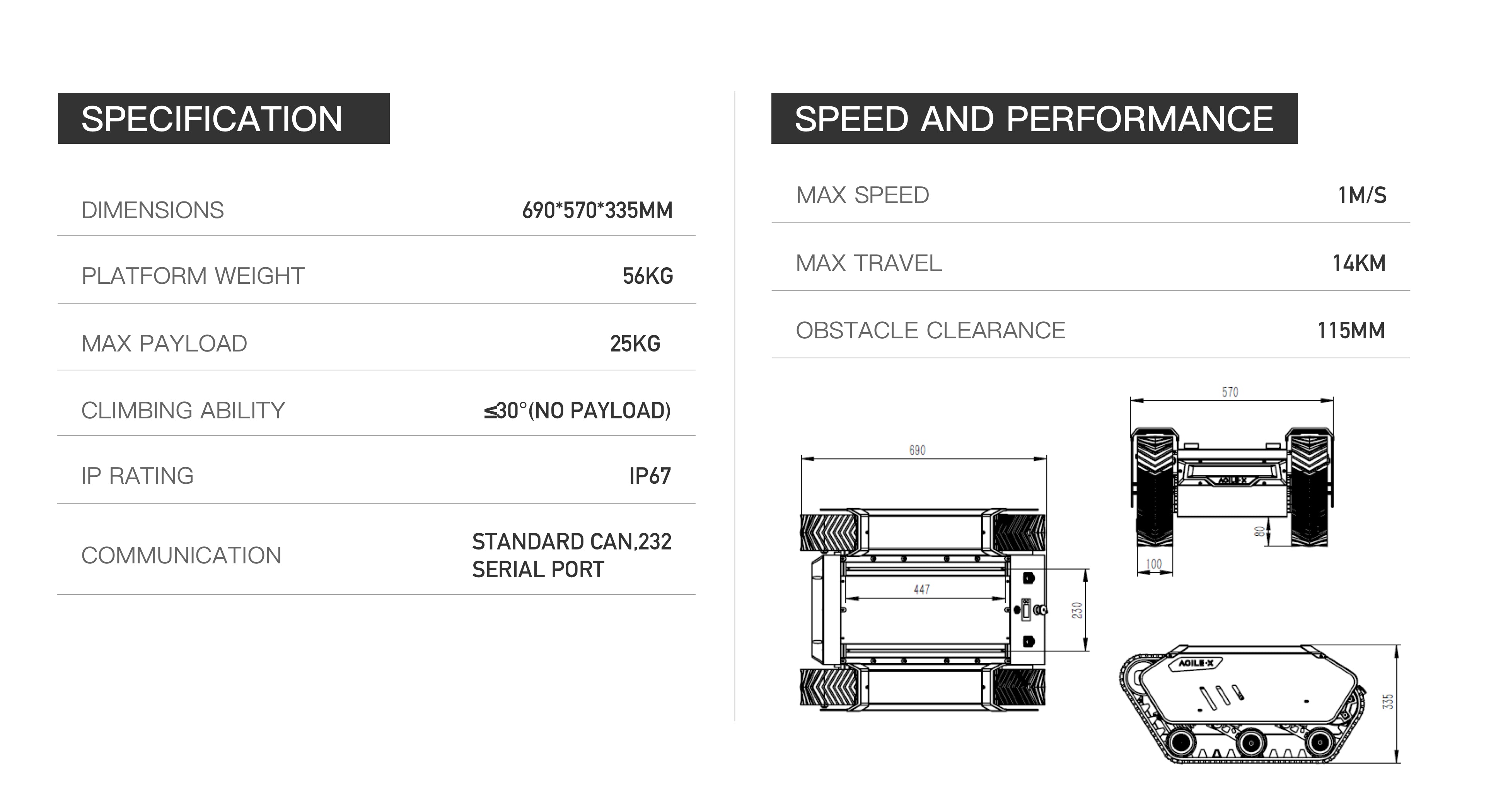

Technical Specifications

MOTION MODE

TRACKED

Payload

25kg

Weight

56kg

CLIMB

10°

obstacle clearance (full load)

100mm

runtime (full load)

1.5hours

Max range (full load)

5km

Temperature

-10~40℃

Ground clearance

80mm

IP Rating

IP67

max speed

1m/s

Dimensions (mm)

690*570*335
