Indoor Two-Wheel Differential Wire-controlled Chassis

TRACER is a two-wheel differential AGV designed for indoor autonomous logistics and warehousing applications. Its flexible design enables easy maneuverability indoors, efficiently handling heavy loads of up to 100KG with strong power. As a low-cost product, TRACER provides excellent value for indoor scenarios.

TRACER features a two-wheel differential drive powered by two 150W brushless servo motors. Its independent rocker arm suspension enables traversal of obstacles up to 10mm tall and slopes as steep as 8°, with a minimum ground clearance of 30mm. With its ability to rotate in place, low profile, and steel body construction, Tracer offers an ideal logistics platform solution.

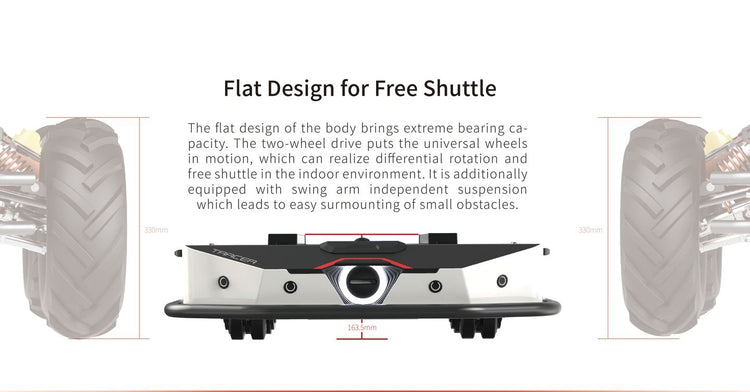

Flat Design For Free Shuttle

TRACER's flat body design maximizes bearing capacity. Its two-wheel drive powers universal wheels for differential rotation, enabling smooth indoor movement. Additionally, swing arm independent suspension ensures easy navigation over small obstacles.

Two-Wheel AGV for Indoor Robotics

TRCER's agility is impressive with its two differential drive wheels and zero turning radius, enabling nimble navigation in tight spaces. It serves as a versatile base for service robots and surveillance platforms, meeting diverse indoor robotics design needs with its powerful battery lasting 4 hours.

Expansion and Secondary Development

TRACER offers aluminum T-slot rails for secure mounting of external sensors or kits. It supports CAN bus protocol for connections and provides open-source SDK and software resources for expanded capabilities.
